1. C181E Correlation Report
1. 1.1. General information
2. 1.2. Current Status
3. 1.3. Fringes
4. 1.4. Notes
5. 1.5. Post-Correlation checks
  1. 1.5.1. Residuals
  2. 1.5.2. FITS completeness (pclist)

C181E Correlation Report

General information

Consists of only one subproject: MM013D.
Session info: http://www3.mpifr-bonn.mpg.de/div/vlbi/globalmm/
Station feedback: http://www3.mpifr-bonn.mpg.de/div/vlbi/globalmm/sessions/apr18/feedback_apr18.asc
GBT calibration info (Tsys files for download) and other related information for this session can be found here:
https://safe.nrao.edu/wiki/bin/view/GB/Observing/WbandVLBACal/C181
The only correlation block of C181 that was processed in the usual way since ALMA did not participate in it.

Current Status

Correlation finished, data released on 10/12/2018.

Fringes

Station	Code	Fringes	Plots	Comments
Ef	B	yes	Fringe overview of all baselines of this antenna in LL (left for each baseline) and RR (right for each baseline). Legend: white - scheduled, but no data, blue - no fringe, red-green - fringes of different quality. D -- fourfit error, in this case due to mixing upper and lower subbands in the KVN compatibility mode, no real problem with the data.: c181e_FRINGE_RfAnt_Ef_LLRR_AllSrc.pdf Examples of fourfit fringe plots: c181e_No0049_3C454.3_bB_LL.pdf, c181e_No0049_3C454.3_bB_RR.pdf, no LR or RL fringes c181e_No0041_3C454.3_Bf_LL.pdf, c181e_No0041_3C454.3_Bf_RR.pdf, no LR or RL fringes c181e_No0041_3C454.3_Bk_LL.pdf, c181e_No0041_3C454.3_Bk_RR.pdf, no LR or RL fringes c181e_No0041_3C454.3_Bl_LL.pdf, c181e_No0041_3C454.3_Bl_LR.pdf, no fringe in RL, c181e_No0041_3C454.3_Bl_RR.pdf c181e_No0041_3C454.3_Bn_LL.pdf, c181e_No0041_3C454.3_Bn_RR.pdf, no LR or RL fringes c181e_No0041_3C454.3_Bo_LL.pdf, c181e_No0041_3C454.3_Bo_RR.pdf, no LR or RL fringes c181e_No0041_3C454.3_Bp_LL.pdf, c181e_No0041_3C454.3_Bp_RR.pdf, no LR or RL fringes c181e_No0041_3C454.3_BX_LL.pdf, c181e_No0041_3C454.3_BX_LR.pdf, c181e_No0041_3C454.3_BX_RL.pdf, c181e_No0041_3C454.3_BX_RR.pdf c181e_No0041_3C454.3_BY_LL.pdf, c181e_No0041_3C454.3_BY_LR.pdf, no RL or RR fringes c181e_No0041_3C454.3_BZ_LL.pdf, c181e_No0041_3C454.3_BZ_LR.pdf, c181e_No0041_3C454.3_BZ_RL.pdf, c181e_No0041_3C454.3_BZ_RR.pdf c181e_No0055_3C454.3_BP_LL.pdf, c181e_No0055_3C454.3_BP_LR.pdf, c181e_No0055_3C454.3_BP_RL.pdf, c181e_No0055_3C454.3_BP_RR.pdf c181e_No0077_0716+714_Bt_LR.pdf, c181e_No0077_0716+714_Bt_RL.pdf, no LL or RR fringes c181e_No0077_0716+714_Bu_LL.pdf, c181e_No0077_0716+714_Bu_LR.pdf, c181e_No0077_0716+714_Bu_RL.pdf, c181e_No0077_0716+714_Bu_RR.pdf Same for all antennas below unless otherwise noted.
On	X	yes	c181e_FRINGE_RfAnt_On_LLRR_AllSrc.pdf c181e_No0041_3C454.3_BX_LL.pdf, c181e_No0041_3C454.3_BX_LR.pdf, c181e_No0041_3C454.3_BX_RL.pdf, c181e_No0041_3C454.3_BX_RR.pdf c181e_No0049_3C454.3_bX_LL.pdf, c181e_No0049_3C454.3_bX_RR.pdf, no LR or RL fringes c181e_No0055_3C454.3_XP_LL.pdf, c181e_No0055_3C454.3_XP_LR.pdf, c181e_No0055_3C454.3_XP_RL.pdf, c181e_No0055_3C454.3_XP_RR.pdf c181e_No0077_0716+714_tX_LL.pdf, c181e_No0077_0716+714_tX_LR.pdf, c181e_No0077_0716+714_tX_RL.pdf, c181e_No0077_0716+714_tX_RR.pdf c181e_No0077_0716+714_uX_LL.pdf, c181e_No0077_0716+714_uX_LR.pdf, c181e_No0077_0716+714_uX_RL.pdf, c181e_No0077_0716+714_uX_RR.pdf
Ys	Y	yes	c181e_FRINGE_RfAnt_Ys_LLRR_AllSrc.pdf c181e_No0041_3C454.3_BY_LL.pdf, c181e_No0041_3C454.3_BY_LR.pdf, no RL or RR fringes c181e_No0055_3C454.3_PY_LL.pdf, c181e_No0055_3C454.3_PY_LR.pdf, c181e_No0055_3C454.3_PY_RL.pdf, c181e_No0055_3C454.3_PY_RR.pdf	As usual, Ys observed LCP only, but it was also recorded as fake RCP, that's why there are common Ys "right" to other antenna's left fringes.
Mh	Z	yes	c181e_FRINGE_RfAnt_Mh_LLRR_AllSrc.pdf c181e_No0041_3C454.3_BZ_LL.pdf, c181e_No0041_3C454.3_BZ_LR.pdf, c181e_No0041_3C454.3_BZ_RL.pdf, c181e_No0041_3C454.3_BZ_RR.pdf c181e_No0055_3C454.3_ZP_LL.pdf, c181e_No0055_3C454.3_ZP_LR.pdf, c181e_No0055_3C454.3_ZP_RL.pdf, c181e_No0055_3C454.3_ZP_RR.pdf
Pv	P	yes	c181e_FRINGE_RfAnt_Pv_LLRR_AllSrc.pdf c181e_No0055_3C454.3_BP_LL.pdf, c181e_No0055_3C454.3_BP_LR.pdf, c181e_No0055_3C454.3_BP_RL.pdf, c181e_No0055_3C454.3_BP_RR.pdf c181e_No0055_3C454.3_fP_LL.pdf, c181e_No0055_3C454.3_fP_LR.pdf, c181e_No0055_3C454.3_fP_RL.pdf, c181e_No0055_3C454.3_fP_RR.pdf c181e_No0055_3C454.3_kP_LL.pdf, c181e_No0055_3C454.3_kP_RR.pdf, no LR or RL fringes c181e_No0055_3C454.3_lP_LL.pdf, no LR fringe, c181e_No0055_3C454.3_lP_RL.pdf, c181e_No0055_3C454.3_lP_RR.pdf c181e_No0055_3C454.3_nP_LL.pdf, c181e_No0055_3C454.3_nP_RR.pdf, no LR or RL fringes c181e_No0055_3C454.3_oP_LL.pdf, c181e_No0055_3C454.3_oP_LR.pdf, c181e_No0055_3C454.3_oP_RR.pdf, c181e_No0055_3C454.3_pP_LL.pdf c181e_No0055_3C454.3_pP_LR.pdf, no LR fringe, c181e_No0055_3C454.3_pP_RL.pdf, c181e_No0055_3C454.3_pP_RR.pdf c181e_No0055_3C454.3_PY_LL.pdf, c181e_No0055_3C454.3_PY_LR.pdf, c181e_No0055_3C454.3_PY_RL.pdf, c181e_No0055_3C454.3_PY_RR.pdf c181e_No0055_3C454.3_XP_LL.pdf, c181e_No0055_3C454.3_XP_LR.pdf, c181e_No0055_3C454.3_XP_RL.pdf, c181e_No0055_3C454.3_XP_RR.pdf c181e_No0055_3C454.3_ZP_LL.pdf, c181e_No0055_3C454.3_ZP_LR.pdf, c181e_No0055_3C454.3_ZP_RL.pdf, c181e_No0055_3C454.3_ZP_RR.pdf c181e_No0077_0716+714_tP_LL.pdf, c181e_No0077_0716+714_tP_LR.pdf, c181e_No0077_0716+714_tP_RL.pdf, c181e_No0077_0716+714_tP_RR.pdf c181e_No0077_0716+714_uP_LL.pdf, c181e_No0077_0716+714_uP_LR.pdf, c181e_No0077_0716+714_uP_RL.pdf, c181e_No0077_0716+714_uP_RR.pdf
VLBA: Br	b	yes	c181e_FRINGE_RfAnt_Br_LLRR_AllSrc.pdf c181e_No0049_3C454.3_bB_LL.pdf, c181e_No0049_3C454.3_bB_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bf_LL.pdf, c181e_No0049_3C454.3_bf_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bk_LL.pdf, c181e_No0049_3C454.3_bk_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bl_LL.pdf, c181e_No0049_3C454.3_bl_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bn_LL.pdf, c181e_No0049_3C454.3_bn_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bo_LL.pdf, c181e_No0049_3C454.3_bo_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bp_LL.pdf, c181e_No0049_3C454.3_bp_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bX_LL.pdf, c181e_No0049_3C454.3_bX_RR.pdf, no LR or RL fringes
VLBA: Fd	f	yes	c181e_FRINGE_RfAnt_Fd_LLRR_AllSrc.pdf c181e_No0041_3C454.3_Bf_LL.pdf, c181e_No0041_3C454.3_Bf_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bf_LL.pdf, c181e_No0049_3C454.3_bf_RR.pdf, no LR or RL fringes c181e_No0055_3C454.3_fP_LL.pdf, c181e_No0055_3C454.3_fP_LR.pdf, c181e_No0055_3C454.3_fP_RL.pdf, c181e_No0055_3C454.3_fP_RR.pdf
VLBA: Kp	k	yes	c181e_FRINGE_RfAnt_Kp_LLRR_AllSrc.pdf c181e_No0041_3C454.3_Bk_LL.pdf, c181e_No0041_3C454.3_Bk_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bk_LL.pdf, c181e_No0049_3C454.3_bk_RR.pdf, no LR or RL fringes c181e_No0055_3C454.3_kP_LL.pdf, c181e_No0055_3C454.3_kP_RR.pdf, no LR or RL fringes
VLBA: La	l	yes	c181e_FRINGE_RfAnt_La_LLRR_AllSrc.pdf c181e_No0041_3C454.3_Bl_LL.pdf, c181e_No0041_3C454.3_Bl_LR.pdf, no fringe in RL, c181e_No0041_3C454.3_Bl_RR.pdf c181e_No0049_3C454.3_bl_LL.pdf, c181e_No0049_3C454.3_bl_RR.pdf, no LR or RL fringes c181e_No0055_3C454.3_lP_LL.pdf, no LR fringe, c181e_No0055_3C454.3_lP_RL.pdf, c181e_No0055_3C454.3_lP_RR.pdf
VLBA: Mk	m	yes	c181e_FRINGE_RfAnt_Mk_LLRR_AllSrc.pdf c181e_No0079_CTA102_mp_LL.pdf, c181e_No0079_CTA102_mp_LR.pdf, c181e_No0079_CTA102_mp_RL.pdf, c181e_No0079_CTA102_mp_RR.pdf
VLBA: Nl	n	yes	c181e_FRINGE_RfAnt_Nl_LLRR_AllSrc.pdf c181e_No0041_3C454.3_Bn_LL.pdf, c181e_No0041_3C454.3_Bn_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bn_LL.pdf, c181e_No0049_3C454.3_bn_RR.pdf, no LR or RL fringes c181e_No0055_3C454.3_nP_LL.pdf, c181e_No0055_3C454.3_nP_RR.pdf, no LR or RL fringes
VLBA: Ov	o	yes	c181e_FRINGE_RfAnt_Ov_LLRR_AllSrc.pdf c181e_No0041_3C454.3_Bo_LL.pdf, c181e_No0041_3C454.3_Bo_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bo_LL.pdf, c181e_No0049_3C454.3_bo_RR.pdf, no LR or RL fringes c181e_No0055_3C454.3_oP_LL.pdf, c181e_No0055_3C454.3_oP_LR.pdf, c181e_No0055_3C454.3_oP_RR.pdf, c181e_No0055_3C454.3_pP_LL.pdf
VLBA: Pt	p	yes	c181e_FRINGE_RfAnt_Pt_LLRR_AllSrc.pdf c181e_No0041_3C454.3_Bp_LL.pdf, c181e_No0041_3C454.3_Bp_RR.pdf, no LR or RL fringes c181e_No0049_3C454.3_bp_LL.pdf, c181e_No0049_3C454.3_bp_RR.pdf, no LR or RL fringes c181e_No0055_3C454.3_pP_LR.pdf, no LR fringe, c181e_No0055_3C454.3_pP_RL.pdf, c181e_No0055_3C454.3_pP_RR.pdf c181e_No0079_CTA102_mp_LL.pdf, c181e_No0079_CTA102_mp_LR.pdf, c181e_No0079_CTA102_mp_RL.pdf, c181e_No0079_CTA102_mp_RR.pdf
GLT: Gl	g	no	_____________________________________________________________________	did not observe
KVN: Kt	t	yes	c181e_FRINGE_RfAnt_Kt_LLRR_AllSrc.pdf c181e_No0077_0716+714_Bt_LR.pdf, c181e_No0077_0716+714_Bt_RL.pdf, no LL or RR fringes c181e_No0077_0716+714_tX_LL.pdf, c181e_No0077_0716+714_tX_LR.pdf, c181e_No0077_0716+714_tX_RL.pdf, c181e_No0077_0716+714_tX_RR.pdf c181e_No0077_0716+714_tP_LL.pdf, c181e_No0077_0716+714_tP_LR.pdf, c181e_No0077_0716+714_tP_RL.pdf, c181e_No0077_0716+714_tP_RR.pdf c181e_No0077_0716+714_tu_LL.pdf, c181e_No0077_0716+714_tu_LR.pdf, c181e_No0077_0716+714_tu_RL.pdf, c181e_No0077_0716+714_tu_RR.pdf c181e_No0077_0716+714_ty_LL.pdf, c181e_No0077_0716+714_ty_LR.pdf, c181e_No0077_0716+714_ty_RL.pdf, c181e_No0077_0716+714_ty_RR.pdf
KVN: Ku	u	yes	c181e_FRINGE_RfAnt_Ku_LLRR_AllSrc.pdf c181e_No0077_0716+714_Bu_LL.pdf, c181e_No0077_0716+714_Bu_LR.pdf, c181e_No0077_0716+714_Bu_RL.pdf, c181e_No0077_0716+714_Bu_RR.pdf c181e_No0077_0716+714_uP_LL.pdf, c181e_No0077_0716+714_uP_LR.pdf, c181e_No0077_0716+714_uP_RL.pdf, c181e_No0077_0716+714_uP_RR.pdf c181e_No0077_0716+714_uX_LL.pdf, c181e_No0077_0716+714_uX_LR.pdf, c181e_No0077_0716+714_uX_RL.pdf, c181e_No0077_0716+714_uX_RR.pdf c181e_No0077_0716+714_tu_LL.pdf, c181e_No0077_0716+714_tu_LR.pdf, c181e_No0077_0716+714_tu_RL.pdf, c181e_No0077_0716+714_tu_RR.pdf c181e_No0077_0716+714_uy_LL.pdf, c181e_No0077_0716+714_uy_LR.pdf, c181e_No0077_0716+714_uy_RL.pdf, c181e_No0077_0716+714_uy_RR.pdf
KVN: Ky	y	yes	c181e_FRINGE_RfAnt_Ky_LLRR_AllSrc.pdf c181e_No0077_0716+714_ty_LL.pdf, c181e_No0077_0716+714_ty_LR.pdf, c181e_No0077_0716+714_ty_RL.pdf, c181e_No0077_0716+714_ty_RR.pdf c181e_No0077_0716+714_uy_LL.pdf, c181e_No0077_0716+714_uy_LR.pdf, c181e_No0077_0716+714_uy_RL.pdf, c181e_No0077_0716+714_uy_RR.pdf

Notes

For technical reasons the correlation output is saved as 3 different fits files, see their content below in the pclist section.

Post-Correlation checks

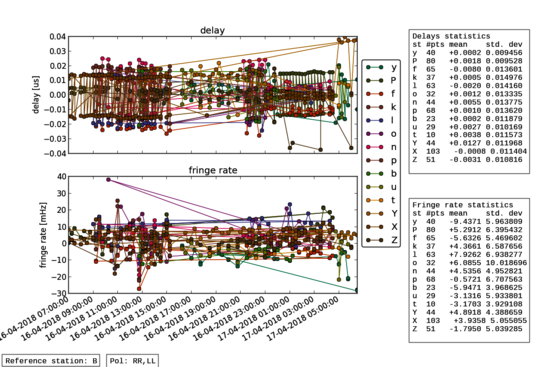

Residuals

FITS completeness (pclist)

legend:

o -- station scheduled and fully accounted for in the fits file
42 (or another number) -- station scheduled, but data found
                          only for 42% of the scheduled interval
x -- station scheduled, but corresponding entry not found in the fits file
. -- station not scheduled

mm013d_setup1.fits:

                                   EF ON YS PV MH NL FD PT LA OV KP BR MK KY KU KT
c181e_001 No0001    BLLAC 3mm_RDBE o  o  o  x  o  .  .  .  .  .  .  .  .  .  .  .
c181e_002 No0002 1510-089 3mm_RDBE .  .  .  .  .  o  o  53 o  o  o  o  o  .  .  .
c181e_003 No0003    BLLAC 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  .  .  .
c181e_004 No0004 1510-089 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_005 No0005    BLLAC 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  .  .  .
c181e_006 No0006 1510-089 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_007 No0007    BLLAC 3mm_RDBE o  o  o  42 o  .  .  .  .  .  .  .  .  .  .  .
c181e_008 No0008 1510-089 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_009 No0009    BLLAC 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  .  .  .
c181e_010 No0010 1510-089 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_011 No0011    BLLAC 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  .  .  .
c181e_012 No0012 1510-089 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_013 No0013    BLLAC 3mm_RDBE o  o  o  .  o  o  .  .  .  .  .  .  .  .  .  .
c181e_014 No0014 1510-089 3mm_RDBE .  .  .  .  .  .  o  o  o  o  o  o  o  .  .  .
c181e_015 No0015    BLLAC 3mm_RDBE o  o  o  .  o  o  .  .  .  .  .  .  .  .  .  .
c181e_016 No0016 1510-089 3mm_RDBE .  .  .  .  .  .  o  o  o  o  o  o  o  .  .  .
c181e_017 No0017    BLLAC 3mm_RDBE o  o  o  o  o  o  .  o  o  .  .  .  .  .  .  .
c181e_018 No0018 1510-089 3mm_RDBE .  .  .  .  .  .  o  .  .  o  o  o  o  .  .  .
c181e_019 No0019    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_020 No0020 1749+096 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_021 No0021    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_022 No0022 1749+096 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_023 No0023    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_024 No0024    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  .  .  .  .
c181e_025 No0025    BLLAC 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  .  .  .
c181e_026 No0026 1749+096 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_027 No0027    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_028 No0028 1749+096 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_029 No0029    BLLAC 3mm_RDBE o  o  o  x  o  o  o  o  o  o  o  o  .  .  .  .
c181e_030 No0030 1749+096 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_032 No0032    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  .  .  .  .
c181e_034 No0034  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  .  .  .  .
c181e_036 No0036  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  .  .  .  .
c181e_038 No0038 1749+096 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_040 No0040    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_042 No0042  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  .  .  .  .
c181e_044 No0044    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_046 No0046 1749+096 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_048 No0048    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_050 No0050  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  .  .  .  .
c181e_052 No0052    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_054 No0054    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_056 No0056  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_058 No0058    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_060 No0060 1749+096 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  o  o  o
c181e_062 No0062    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_064 No0064 1749+096 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  o  o  o
c181e_066 No0066    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_068 No0068    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_069 No0069   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_071 No0071 1749+096 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_073 No0073   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_074 No0074  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_076 No0076 1749+096 3mm_RDBE .  .  .  .  .  .  o  o  o  o  o  o  o  .  .  .
c181e_078 No0078    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_079 No0079   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_081 No0081  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_083 No0083    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_084 No0084   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_086 No0086  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_088 No0088    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_089 No0089   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_091 No0091  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_093 No0093    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_094 No0094   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_096 No0096  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_098 No0098    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_099 No0099   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_101 No0101  3C454.3 3mm_RDBE .  .  .  .  .  o  o  48 o  o  o  o  o  .  .  .
c181e_103 No0103    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_104 No0104   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_106 No0106  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_108 No0108    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_109 No0109   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_111 No0111  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_113 No0113    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_114 No0114   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_116 No0116  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_118 No0118    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_119 No0119   CTA102 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_121 No0121  3C454.3 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_123 No0123    BLLAC 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_124 No0124   CTA102 3mm_RDBE .  .  .  .  .  .  o  o  o  o  o  o  o  .  .  .
c181e_126 No0126  3C454.3 3mm_RDBE .  .  .  .  .  .  o  o  o  o  o  o  o  .  .  .
c181e_128 No0128  3C454.3 3mm_RDBE .  .  .  .  .  .  o  o  o  o  o  o  o  .  .  .
c181e_130 No0130 0716+714 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  o
c181e_132 No0132 0836+710 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  o
c181e_134 No0134 0954+658 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  o
c181e_136 No0136 0716+714 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  o
c181e_138 No0138 0836+710 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  o
c181e_140 No0140 0954+658 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  x
c181e_142 No0142 0716+714 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  o
c181e_144 No0144 0836+710 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  o
c181e_146 No0146 0954+658 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  o
c181e_148 No0148 0716+714 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  o
c181e_150 No0150 0716+714 3mm_RDBE .  o  o  .  o  o  o  o  o  o  o  o  o  o  o  o
c181e_169 No0169 1055+018 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_171 No0171 1156+295 3mm_RDBE .  .  .  .  .  .  o  o  o  o  o  o  o  .  .  .
c181e_173 No0173 1055+018 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_175 No0175 1156+295 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_176 No0176 1055+018 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_178 No0178 1156+295 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_180 No0180 1055+018 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_181 No0181 1156+295 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_183 No0183 1055+018 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_185 No0185 1156+295 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .
c181e_186 No0186 1055+018 3mm_RDBE .  .  .  .  .  o  o  o  o  o  o  o  o  .  .  .

mm013d_setup2.fits:

                                   EF ON YS PV MH NL FD PT LA OV KP BR MK KY KU KT
c181e_031 No0031    BLLAC 3mm_RDBE o  o  o  x  o  o  o  o  o  o  o  o  .  .  .  .
c181e_033 No0033  3C454.3 3mm_RDBE o  o  o  x  o  o  o  o  o  .  o  o  .  .  .  .
c181e_035 No0035    BLLAC 3mm_RDBE o  o  o  x  o  o  o  o  o  o  o  o  .  .  .  .
c181e_037 No0037    BLLAC 3mm_RDBE o  o  o  x  o  .  .  .  .  .  .  .  .  .  .  .
c181e_039 No0039    BLLAC 3mm_RDBE o  o  o  x  o  o  o  o  o  o  o  o  .  .  .  .
c181e_041 No0041  3C454.3 3mm_RDBE o  o  o  x  o  o  o  o  o  o  o  o  .  .  .  .
c181e_043 No0043    BLLAC 3mm_RDBE o  o  o  x  o  o  o  o  o  o  o  o  .  .  .  .
c181e_045 No0045    BLLAC 3mm_RDBE o  o  o  04 o  .  .  .  .  .  .  .  .  .  .  .
c181e_047 No0047    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_049 No0049  3C454.3 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_051 No0051    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_053 No0053    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_055 No0055  3C454.3 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_057 No0057    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_059 No0059    BLLAC 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  .  .  .
c181e_061 No0061    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_063 No0063    BLLAC 3mm_RDBE o  .  o  o  o  .  .  .  .  .  .  .  .  .  .  .
c181e_065 No0065    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_067 No0067    BLLAC 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_070 No0070 0716+714 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_072 No0072 0836+710 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_075 No0075 0954+658 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_077 No0077 0716+714 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_080 No0080 0836+710 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_082 No0082 0954+658 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_085 No0085 0716+714 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  x
c181e_087 No0087 0836+710 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  x
c181e_090 No0090 0954+658 3mm_RDBE o  o  o  o  28 .  .  .  .  .  .  .  .  o  o  o
c181e_092 No0092 0716+714 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_095 No0095 0836+710 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_097 No0097 0954+658 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_100 No0100 0716+714 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_102 No0102 0836+710 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_105 No0105 0954+658 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_107 No0107 0716+714 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_110 No0110 0836+710 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_112 No0112 0954+658 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_115 No0115 0716+714 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_117 No0117 0836+710 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  x
c181e_120 No0120 0954+658 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_122 No0122 0716+714 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_125 No0125 0836+710 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_127 No0127 0954+658 3mm_RDBE o  o  o  o  o  o  .  .  .  .  .  .  .  o  o  o
c181e_129 No0129 0716+714 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  o  o  x
c181e_131 No0131 0836+710 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  o  o  x
c181e_133 No0133 0954+658 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  o  o  o
c181e_135 No0135 0716+714 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  o  o  o
c181e_137 No0137 0836+710 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  o  o  o
c181e_139 No0139 0954+658 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  o  o  o
c181e_141 No0141 0716+714 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  o  o  o

mm013d_setup3.fits:

                                   EF ON YS PV MH NL FD PT LA OV KP BR MK KY KU KT
c181e_143 No0143 0836+710 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  o  o  o
c181e_145 No0145 0954+658 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  o  o  o
c181e_147 No0147 0716+714 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  o  o  o
c181e_149 No0149 0716+714 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  o  o  o
c181e_151 No0151 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_152 No0152 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_153 No0153 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_154 No0154 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_155 No0155 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_156 No0156 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_157 No0157 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_158 No0158 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_159 No0159 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_160 No0160 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  .  .  .  .
c181e_161 No0161 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_162 No0162 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_163 No0163 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_164 No0164 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_165 No0165 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_166 No0166 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_167 No0167 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_168 No0168 1156+295 3mm_RDBE o  o  o  o  o  o  o  o  o  o  o  o  o  .  .  .
c181e_170 No0170  3C454.3 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  x
c181e_172 No0172  3C454.3 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_174 No0174  3C454.3 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  x
c181e_177 No0177  3C454.3 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  x
c181e_179 No0179  3C454.3 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_182 No0182  3C454.3 3mm_RDBE 09 o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_184 No0184  3C454.3 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o
c181e_187 No0187  3C454.3 3mm_RDBE o  o  o  o  o  .  .  .  .  .  .  .  .  o  o  o

	Size	Date	Attached by
c181e_FRINGE_RfAnt_Br_LLRR_AllSrc.pdf No description	365.55 kB	19:00, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Ef_LLRR_AllSrc.pdf No description	575.96 kB	18:59, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Fd_LLRR_AllSrc.pdf No description	370.03 kB	19:00, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Kp_LLRR_AllSrc.pdf No description	368.52 kB	19:00, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Kt_LLRR_AllSrc.pdf No description	394.86 kB	19:01, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Ku_LLRR_AllSrc.pdf No description	395.77 kB	19:02, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Ky_LLRR_AllSrc.pdf No description	397.07 kB	19:02, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_La_LLRR_AllSrc.pdf No description	368.59 kB	19:01, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Mh_LLRR_AllSrc.pdf No description	125.69 kB	19:00, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Mk_LLRR_AllSrc.pdf No description	142.29 kB	19:01, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Nl_LLRR_AllSrc.pdf No description	337.03 kB	19:01, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_On_LLRR_AllSrc.pdf No description	122.95 kB	18:59, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Ov_LLRR_AllSrc.pdf No description	357.15 kB	19:01, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Pt_LLRR_AllSrc.pdf No description	368.78 kB	19:01, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Pv_LLRR_AllSrc.pdf No description	586.34 kB	19:00, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_FRINGE_RfAnt_Ys_LLRR_AllSrc.pdf No description	126.05 kB	18:59, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bf_LL.pdf No description	60.04 kB	19:05, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bf_RR.pdf No description	61.19 kB	19:05, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bk_LL.pdf No description	61.98 kB	19:05, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bk_RR.pdf No description	60.88 kB	19:05, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bl_LL.pdf No description	59.57 kB	19:06, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bl_LR.pdf No description	63.5 kB	19:06, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bl_RR.pdf No description	59.61 kB	19:06, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bn_LL.pdf No description	61.21 kB	19:06, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bn_RR.pdf No description	61.87 kB	19:06, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bo_LL.pdf No description	62.03 kB	19:06, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bo_RR.pdf No description	61.62 kB	19:06, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bp_LL.pdf No description	62.25 kB	19:07, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_Bp_RR.pdf No description	60.79 kB	19:07, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_BX_LL.pdf No description	58.59 kB	19:07, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_BX_LR.pdf No description	59.63 kB	19:07, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_BX_RL.pdf No description	61.6 kB	19:07, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_BX_RR.pdf No description	58.8 kB	19:07, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_BY_LL.pdf No description	58.43 kB	19:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_BY_LR.pdf No description	58.14 kB	19:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_BZ_LL.pdf No description	59.33 kB	19:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_BZ_LR.pdf No description	61.03 kB	19:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_BZ_RL.pdf No description	60.94 kB	19:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0041_3C454.3_BZ_RR.pdf No description	60.04 kB	19:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bB_LL.pdf No description	61.77 kB	19:26, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bB_RR.pdf No description	61.49 kB	19:26, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bf_LL.pdf No description	59.74 kB	19:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bf_RR.pdf No description	59.92 kB	19:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bk_LL.pdf No description	59.21 kB	19:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bk_RR.pdf No description	59.46 kB	19:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bl_LL.pdf No description	59.91 kB	22:20, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bl_RR.pdf No description	60.09 kB	22:20, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bn_LL.pdf No description	61.67 kB	22:20, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bn_RR.pdf No description	62.56 kB	22:20, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bo_LL.pdf No description	61.08 kB	22:20, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bo_RR.pdf No description	62.99 kB	22:20, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bp_LL.pdf No description	61.61 kB	22:20, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bp_RR.pdf No description	61.52 kB	22:20, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bX_LL.pdf No description	63.5 kB	22:21, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0049_3C454.3_bX_RR.pdf No description	63.54 kB	22:21, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_BP_LL.pdf No description	57.88 kB	19:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_BP_LR.pdf No description	61.08 kB	19:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_BP_RL.pdf No description	61.74 kB	19:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_BP_RR.pdf No description	57.99 kB	19:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_fP_LL.pdf No description	59.4 kB	22:22, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_fP_LR.pdf No description	62.34 kB	22:22, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_fP_RL.pdf No description	61.53 kB	22:22, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_fP_RR.pdf No description	59.11 kB	22:22, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_kP_LL.pdf No description	60.59 kB	22:23, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_kP_RR.pdf No description	60.67 kB	22:23, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_lP_LL.pdf No description	59.48 kB	22:23, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_lP_RL.pdf No description	63.71 kB	22:23, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_lP_RR.pdf No description	59.04 kB	22:23, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_nP_LL.pdf No description	61.66 kB	22:24, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_nP_RR.pdf No description	62.31 kB	22:24, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_oP_LL.pdf No description	59.96 kB	22:24, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_oP_LR.pdf No description	63.74 kB	22:24, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_oP_RR.pdf No description	61.67 kB	22:24, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_pP_LL.pdf No description	59.26 kB	22:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_pP_LR.pdf No description	62.21 kB	22:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_pP_RL.pdf No description	61.76 kB	22:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_pP_RR.pdf No description	59.27 kB	22:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_PY_LL.pdf No description	58.67 kB	22:26, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_PY_LR.pdf No description	58.56 kB	22:26, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_PY_RL.pdf No description	63.29 kB	22:26, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_PY_RR.pdf No description	62.43 kB	22:26, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_XP_LL.pdf No description	57.77 kB	22:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_XP_LR.pdf No description	60.91 kB	22:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_XP_RL.pdf No description	59.18 kB	22:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_XP_RR.pdf No description	57.83 kB	22:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_ZP_LL.pdf No description	58.78 kB	22:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_ZP_LR.pdf No description	61.29 kB	22:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_ZP_RL.pdf No description	61.39 kB	22:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0055_3C454.3_ZP_RR.pdf No description	58.89 kB	22:27, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_Bt_LR.pdf No description	63.6 kB	19:29, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_Bt_RL.pdf No description	62.55 kB	19:29, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_Bu_LL.pdf No description	62.9 kB	19:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_Bu_LR.pdf No description	63.02 kB	19:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_Bu_RL.pdf No description	62.96 kB	20:25, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_Bu_RR.pdf No description	62.98 kB	19:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tP_LL.pdf No description	62.03 kB	22:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tP_LR.pdf No description	61.94 kB	22:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tP_RL.pdf No description	62.15 kB	22:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tP_RR.pdf No description	62.04 kB	22:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tu_LL.pdf No description	63.92 kB	22:31, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tu_LR.pdf No description	63.4 kB	22:31, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tu_RL.pdf No description	63.29 kB	22:31, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tu_RR.pdf No description	63.27 kB	22:31, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tX_LL.pdf No description	62.85 kB	22:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tX_LR.pdf No description	63.07 kB	22:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tX_RL.pdf No description	63.51 kB	22:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_tX_RR.pdf No description	63.05 kB	22:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_ty_LL.pdf No description	63.7 kB	22:32, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_ty_LR.pdf No description	63.9 kB	22:32, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_ty_RL.pdf No description	64.01 kB	22:32, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_ty_RR.pdf No description	63.58 kB	22:32, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uP_LL.pdf No description	62.79 kB	22:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uP_LR.pdf No description	61.71 kB	22:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uP_RL.pdf No description	62.78 kB	22:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uP_RR.pdf No description	61.16 kB	22:28, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uX_LL.pdf No description	63.81 kB	22:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uX_LR.pdf No description	63 kB	22:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uX_RL.pdf No description	63.85 kB	22:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uX_RR.pdf No description	63.22 kB	22:30, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uy_LL.pdf No description	63.9 kB	22:33, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uy_LR.pdf No description	63.38 kB	22:33, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uy_RL.pdf No description	64.01 kB	22:33, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0077_0716+714_uy_RR.pdf No description	63.91 kB	22:33, 23 Nov 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0079_CTA102_mp_LL.pdf No description	62.84 kB	20:33, 3 Dec 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0079_CTA102_mp_LR.pdf No description	65.39 kB	20:33, 3 Dec 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0079_CTA102_mp_RL.pdf No description	64.67 kB	20:33, 3 Dec 2018	yurii	Actions Attach new version Edit description Move/rename Delete
c181e_No0079_CTA102_mp_RR.pdf No description	63.09 kB	20:33, 3 Dec 2018	yurii	Actions Attach new version Edit description Move/rename Delete
plotRes_B.png No description	388.25 kB	05:10, 8 Dec 2018	yurii	Actions Attach new version Edit description Move/rename Delete
plotRes_k.png No description	334.23 kB	05:10, 8 Dec 2018	yurii	Actions Attach new version Edit description Move/rename Delete
plotRes_P.png No description	438.59 kB	05:10, 8 Dec 2018	yurii	Actions Attach new version Edit description Move/rename Delete

Table of contents

C181E/MM013D

Table of contents

C181E Correlation Report

General information

Current Status

Fringes

Notes

Post-Correlation checks

Residuals

FITS completeness (pclist)

Comments

Attachments

Table of contents
