1. C181F / MJ001B Correlation Report
1. 1.1. General information
2. 1.2. Current Status
3. 1.3. Fringes
4. 1.4. Notes
5. 1.5. Post-Correlation checks
  1. 1.5.1. Residuals
  2. 1.5.2. FITS completeness (pclist)

C181F / MJ001B Correlation Report

General information

Consists of only one subproject: MJ001B.
Session info: http://www3.mpifr-bonn.mpg.de/div/vlbi/globalmm/
Station feedback: http://www3.mpifr-bonn.mpg.de/div/vlbi/globalmm/sessions/apr18/feedback_apr18.asc
GBT calibration info (Tsys files for download) and other related information for this session can be found here:
https://safe.nrao.edu/wiki/bin/view/GB/Observing/WbandVLBACal/C181
Special processing was applied to all data in order to correlate mismatching frequency setups of ALMA and other GMVA stations. See details here.

Current Status

Correlation finished, data released on 10/12/2018.

A second data release, with a problem, spotted in the original release, corrected, was made on 31/01/2019.

A third data release, rerunning PolConvert with the latest (25.06.2019) ALMA QA2 release, was made on 16/09/2019.

Fringes

Station	Code	Fringes	Plots	Comments
VLBA: Br	b	yes	Fringe overview of all baselines of this antenna in LL (left for each baseline) and RR (right for each baseline). Legend: white - scheduled, but no data, blue - no fringe, red-green - fringes of different quality. c181f_FRINGE_RfAnt_Br_LLRR_AllSrc.pdf Examples of fourfit fringe plots: c181f_No0002_3C279_bp_LL.pdf, c181f_No0002_3C279_bp_LR.pdf, c181f_No0002_3C279_bp_RL.pdf, c181f_No0002_3C279_bp_RR.pdf c181f_No0042_1921-293_Ab_LL.pdf, c181f_No0042_1921-293_Ab_LR.pdf, c181f_No0042_1921-293_Ab_RL.pdf, c181f_No0042_1921-293_Ab_RR.pdf Same for all antennas below unless otherwise noted.
VLBA: Fd	f	yes	c181f_FRINGE_RfAnt_Fd_LLRR_AllSrc.pdf c181f_No0002_3C279_fp_LL.pdf, c181f_No0002_3C279_fp_LR.pdf, c181f_No0002_3C279_fp_RL.pdf, c181f_No0002_3C279_fp_RR.pdf c181f_No0042_1921-293_Af_LL.pdf, c181f_No0042_1921-293_Af_LR.pdf, c181f_No0042_1921-293_Af_RL.pdf, c181f_No0042_1921-293_Af_RR.pdf
VLBA: Kp	k	yes	c181f_FRINGE_RfAnt_Kp_LLRR_AllSrc.pdf c181f_No0042_1921-293_Ak_LL.pdf, c181f_No0042_1921-293_Ak_LR.pdf, c181f_No0042_1921-293_Ak_RL.pdf, c181f_No0042_1921-293_Ak_RR.pdf
VLBA: La	l	yes	c181f_FRINGE_RfAnt_La_LLRR_AllSrc.pdf c181f_No0002_3C279_lp_LL.pdf, c181f_No0002_3C279_lp_LR.pdf, c181f_No0002_3C279_lp_RL.pdf, c181f_No0002_3C279_lp_RR.pdf c181f_No0042_1921-293_Al_LL.pdf, c181f_No0042_1921-293_Al_LR.pdf, c181f_No0042_1921-293_Al_RL.pdf, c181f_No0042_1921-293_Al_RR.pdf
VLBA: Mk	m	yes	c181f_FRINGE_RfAnt_Mk_LLRR_AllSrc.pdf c181f_No0002_3C279_mp_LL.pdf, c181f_No0002_3C279_mp_LR.pdf, c181f_No0002_3C279_mp_RL.pdf, c181f_No0002_3C279_mp_RR.pdf c181f_No0042_1921-293_Am_LL.pdf, c181f_No0042_1921-293_Am_LR.pdf, c181f_No0042_1921-293_Am_RL.pdf, c181f_No0042_1921-293_Am_RR.pdf
VLBA: Nl	n	yes	c181f_FRINGE_RfAnt_Nl_LLRR_AllSrc.pdf c181f_No0002_3C279_np_LL.pdf, c181f_No0002_3C279_np_LR.pdf, c181f_No0002_3C279_np_RL.pdf, c181f_No0002_3C279_np_RR.pdf c181f_No0042_1921-293_An_LL.pdf, c181f_No0042_1921-293_An_LR.pdf, c181f_No0042_1921-293_An_RL.pdf, c181f_No0042_1921-293_An_RR.pdf
VLBA: Ov	o	yes	c181f_FRINGE_RfAnt_Ov_LLRR_AllSrc.pdf c181f_No0002_3C279_op_LL.pdf, c181f_No0002_3C279_op_LR.pdf, c181f_No0002_3C279_op_RL.pdf, c181f_No0002_3C279_op_RR.pdf c181f_No0042_1921-293_Ao_LL.pdf, c181f_No0042_1921-293_Ao_LR.pdf, c181f_No0042_1921-293_Ao_RL.pdf,c181f_No0042_1921-293_Ao_RR.pdf
VLBA: Pt	p	yes	c181f_FRINGE_RfAnt_Pt_LLRR_AllSrc.pdf c181f_No0042_1921-293_Ap_LL.pdf, c181f_No0042_1921-293_Ap_LR.pdf, c181f_No0042_1921-293_Ap_RL.pdf, c181f_No0042_1921-293_Ap_RR.pdf c181f_No0002_3C279_bp_LL.pdf, c181f_No0002_3C279_bp_LR.pdf, c181f_No0002_3C279_bp_RL.pdf, c181f_No0002_3C279_bp_RR.pdf c181f_No0002_3C279_fp_LL.pdf, c181f_No0002_3C279_fp_LR.pdf, c181f_No0002_3C279_fp_RL.pdf, c181f_No0002_3C279_fp_RR.pdf c181f_No0002_3C279_lp_LL.pdf, c181f_No0002_3C279_lp_LR.pdf, c181f_No0002_3C279_lp_RL.pdf, c181f_No0002_3C279_lp_RR.pdf c181f_No0002_3C279_mp_LL.pdf, c181f_No0002_3C279_mp_LR.pdf, c181f_No0002_3C279_mp_RL.pdf, c181f_No0002_3C279_mp_RR.pdf c181f_No0002_3C279_np_LL.pdf, c181f_No0002_3C279_np_LR.pdf, c181f_No0002_3C279_np_RL.pdf, c181f_No0002_3C279_np_RR.pdf c181f_No0002_3C279_op_LL.pdf, c181f_No0002_3C279_op_LR.pdf, c181f_No0002_3C279_op_RL.pdf, c181f_No0002_3C279_op_RR.pdf	Taken out for several scans because of USNO observing.
GBT: Gb	G	no	____________________________________________________________________	unrecoverable read error of the Mk5 module, logs indicate bad weather, so this loss is considered non-critical
ALMA: Aa	A	yes	In this case bright red indicates false fringes (detected as the ones having abnormally high single-band delay) that fourfit in this particular case finds for all baselines for which there is no true fringe as a result of a glitch. c181f_SBD_RfAnt_Aa_LLRR_AllSrc.pdf c181f_No0002_3C279_Ap_LL.pdf, c181f_No0002_3C279_Ap_LR.pdf, c181f_No0002_3C279_Ap_RL.pdf, c181f_No0002_3C279_Ap_RR.pdf c181f_No0042_1921-293_Ab_LL.pdf, c181f_No0042_1921-293_Ab_LR.pdf, c181f_No0042_1921-293_Ab_RL.pdf, c181f_No0042_1921-293_Ab_RR.pdf c181f_No0042_1921-293_Af_LL.pdf, c181f_No0042_1921-293_Af_LR.pdf, c181f_No0042_1921-293_Af_RL.pdf, c181f_No0042_1921-293_Af_RR.pdf c181f_No0042_1921-293_Ak_LL.pdf, c181f_No0042_1921-293_Ak_LR.pdf, c181f_No0042_1921-293_Ak_RL.pdf, c181f_No0042_1921-293_Ak_RR.pdf c181f_No0042_1921-293_Al_LL.pdf, c181f_No0042_1921-293_Al_LR.pdf, c181f_No0042_1921-293_Al_RL.pdf, c181f_No0042_1921-293_Al_RR.pdf c181f_No0042_1921-293_Am_LL.pdf, c181f_No0042_1921-293_Am_LR.pdf, c181f_No0042_1921-293_Am_RL.pdf, c181f_No0042_1921-293_Am_RR.pdf c181f_No0042_1921-293_An_LL.pdf, c181f_No0042_1921-293_An_LR.pdf, c181f_No0042_1921-293_An_RL.pdf, c181f_No0042_1921-293_An_RR.pdf c181f_No0042_1921-293_Ao_LL.pdf, c181f_No0042_1921-293_Ao_LR.pdf, c181f_No0042_1921-293_Ao_RL.pdf, c181f_No0042_1921-293_Ao_RR.pdf c181f_No0042_1921-293_Ap_LL.pdf, c181f_No0042_1921-293_Ap_LR.pdf, c181f_No0042_1921-293_Ap_RL.pdf, c181f_No0042_1921-293_Ap_RR.pdf	Observed in linear polarization, converted to circular polarization in post-correlation uning PolConvert. For technical reasons the atmospheric correction was applied twice -- both in original ALMA data and during the correlation. Although a special procedure was developed to compensate for this, we found that its application leads to other difficulties, in particular to abnormally high fringe rate jumps, so in the final production run the double atmospheric correction was left as is.

Notes

Post-Correlation checks

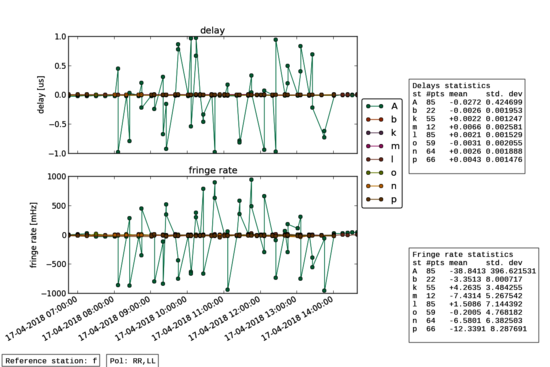

Residuals

Due to fourfit problems there are false fringes to ALMA that create outliers in the plots of residuals. The bottom plot has ALMA removed to show the residuals at normal scale.

FITS completeness (pclist)

                                    AA AA NL FD PT LA OV KP BR MK GB
c181f_01D2D No0001    3C279 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_02D2D No0002    3C279 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_03D2D No0003    3C279 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_04D2D No0005  NRAO530 3mm_RDBE o  o  o  o  x  o  o  o  o  .  x
c181f_05D2D No0006  NRAO530 3mm_RDBE o  o  o  o  x  o  o  o  o  .  x
c181f_06D2D No0008  NRAO530 3mm_RDBE o  o  o  o  x  o  o  o  o  .  x
c181f_07D2D No0009    SGR_A 3mm_RDBE o  o  o  o  x  o  o  o  .  .  x
c181f_08D2D No0010  NRAO530 3mm_RDBE o  o  o  o  x  o  o  o  o  .  x
c181f_09D2D No0011    SGR_A 3mm_RDBE o  o  o  o  x  o  o  o  .  .  x
c181f_10D2D No0012  NRAO530 3mm_RDBE o  o  o  o  x  o  o  o  o  .  x
c181f_11D2D No0013    SGR_A 3mm_RDBE o  o  o  o  x  o  o  o  .  .  x
c181f_12D2D No0015  NRAO530 3mm_RDBE o  o  o  o  77 o  o  o  o  .  x
c181f_13D2D No0016    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  .  x
c181f_14D2D No0017  NRAO530 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_15D2D No0018    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_16D2D No0019  NRAO530 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_17D2D No0020    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_18D2D No0022  NRAO530 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_19D2D No0023    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_20D2D No0024    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_21D2D No0026 1921-293 3mm_RDBE o  o  o  o  o  o  o  o  .  .  x
c181f_22D2D No0027    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_23D2D No0028  NRAO530 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_24D2D No0029    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_25D2D No0030    SGR_A 3mm_RDBE .  .  o  o  o  o  o  o  o  o  .
c181f_26D2D No0032  NRAO530 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_27D2D No0033    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_28D2D No0035 1921-293 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_29D2D No0036    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_30D2D No0037  NRAO530 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_31D2D No0038    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  x
c181f_32D2D No0039    SGR_A 3mm_RDBE .  .  o  o  o  o  o  o  o  o  x
c181f_33D2D No0040  NRAO530 3mm_RDBE x  x  o  o  o  o  o  o  o  o  .
c181f_34D2D No0041    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_35D2D No0042 1921-293 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_36D2D No0043    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_37D2D No0044  NRAO530 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_38D2D No0045    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_39D2D No0046  NRAO530 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_40D2D No0047    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_41D2D No0048 1921-293 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_42D2D No0049    SGR_A 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_43D2D No0050  NRAO530 3mm_RDBE .  .  o  o  o  o  o  o  o  o  .
c181f_44D2D No0051    SGR_A 3mm_RDBE o  o  .  o  o  o  o  o  o  o  .
c181f_45D2D No0052 1921-293 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_46D2D No0053 1921-293 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_47D2D No0054 1921-293 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_48D2D No0055 1921-293 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
c181f_49D2D No0056 1921-293 3mm_RDBE o  o  o  o  o  o  o  o  o  o  .
